3.1 Dynamics of Condensed Phase Molecular Systems
Project coordinators: E. T. J. Nibbering , O. KornilovPhase 5 (2014-2017): Ultrafast dynamics of hydrated DNA and RNA, of phosphate ions and of hydrated protons
The people involved:
Fabian Dahms, Yingliang Liu, Tobias Tyborgski, Eva-Maria Brüning, Rene Costard, Biswajit Guchait, Torsten Siebert, Benjamin Fingerhut, Erik T. J. Nibbering, Thomas Elsaesser
National and international collaboration: Ehud Pines,†
†: Department of Chemistry, Ben Gurion University of the Negev, Beer-Sheva, 84105 Israel
Hydrogen bonding of hydrated biomolecular and biomimetic systems is investigated with ultrafast vibrational spectroscopy. Hydration of biomolecules is addressed on the femto- to picosecond time scale by probing vibrational marker modes sensitive to molecular motions, energy exchange, and structural fluctuations of the hydration shell. Using artificial DNA oligomers as a model system and implementing a technique which allows for femtosecond measurements at a controlled variable hydration level, femtosecond 2D infrared and pump-probe spectroscopy is applied to provide new insight into hydration processes. Experiments on DNA oligomers and base pairs in solution addresses vibrational dynamics within the complementary hydrogen bonding structural motifs of base pairing, giving detailed information on the coupling and relaxation behaviour of the N-H stretching oscillators in these base pairs. The vibrational dynamics of phosphate groups in the DNA backbone and their energy exchange with the water shell have been determined for the first time, demonstrating that the surrounding water layers represent the preferential heat sink for excess energy released in DNA relaxation processes. These findings are complemented and confirmed by measurements on water pools nano-confined in reverse micelle structures with phosphate head groups.
Phase 5 (2014-2017):
In the fifth period we targeted our research on hydration phenomena of DNA oligomers as well as of phosphate ions. A close collaboration with the junior theory group of Dr. Benjamin Fingerhut has been established. A new research line involves the vibrational dynamics of hydrated proton species.
5-1 Vibrational dynamics in hydrated DNA
5-2 Ultrafast dynamics of hydrated phosphate ions
5-3 Ultrafast dynamics of hydrated excess proton
Vibrational dynamics in hydrated DNA
We continue our research on vibrational dynamics in hydrated DNA. Dynamics and couplings of phopshate and sugar backbone modes of Watson-Crick double helix DNA films (consisting of 23 oligomer adenine-thymine base pairs) have been explored with ultrafast IR pump-probe and 2D-IR spectroscopy.

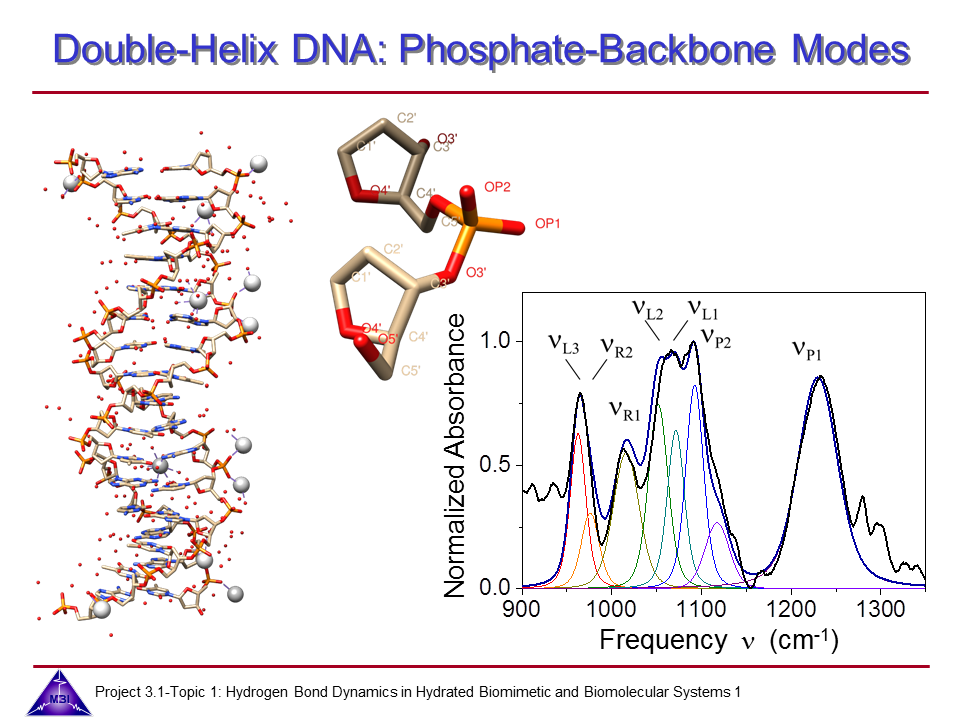

1. FT-IR spectrum of the hydrated DNA films, showing the relevant modes the sugar and phosphate backbone.

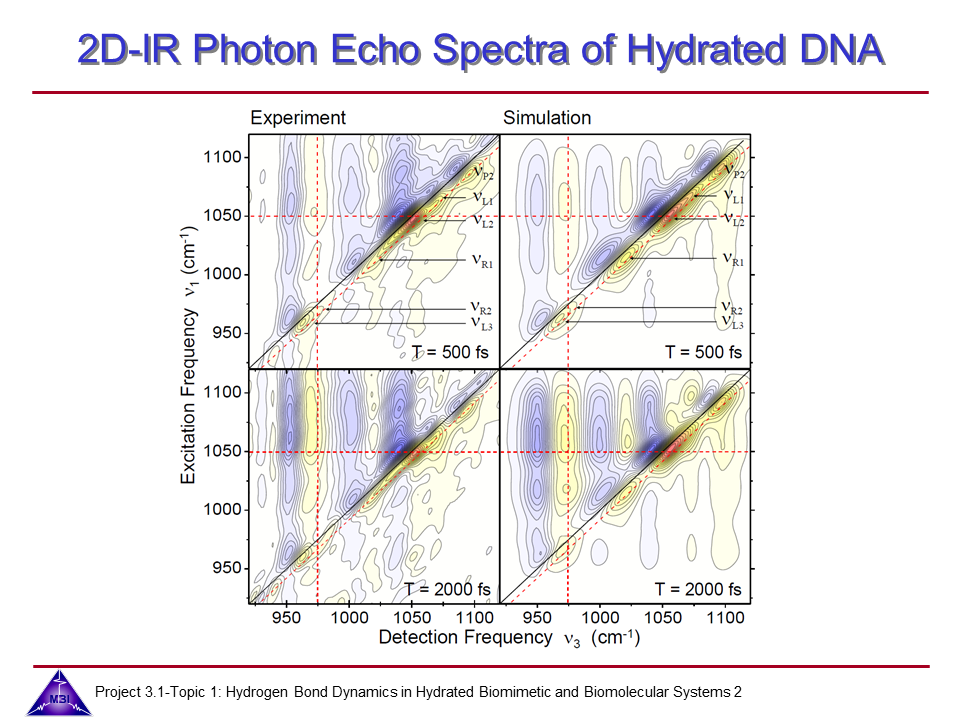

2. 2D-IR photon echo spectra of sugar-phosphate backbone modes of hydrated DNA, measured for different waiting times T.

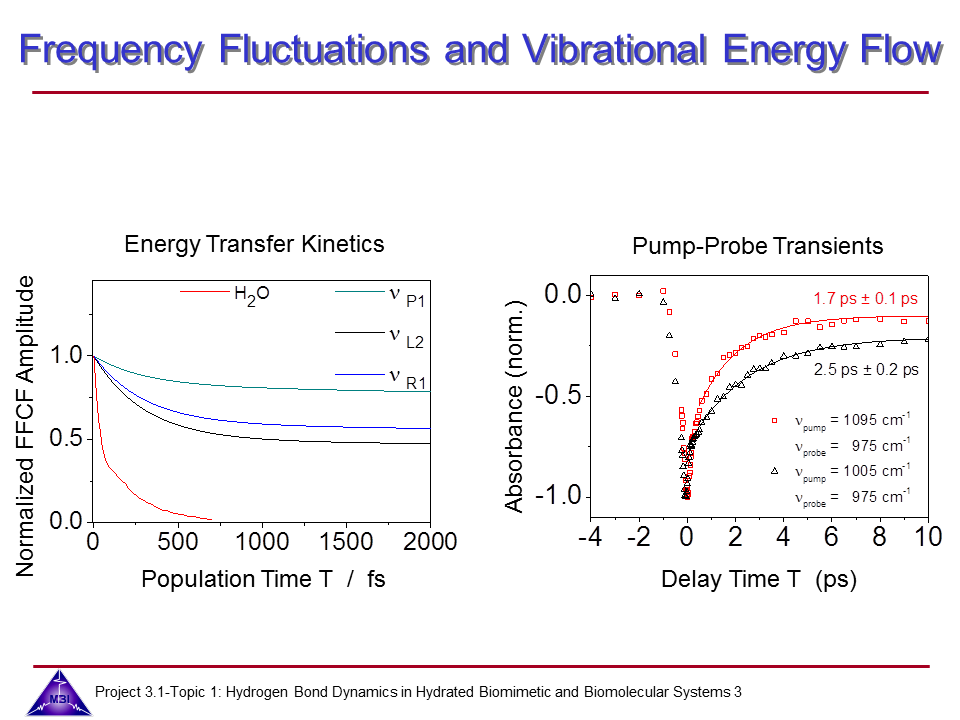

3. Derived frequency-fluctuation correlation function and transient IR pump-probe data obtained on the sugar-phosphate backbone modes.

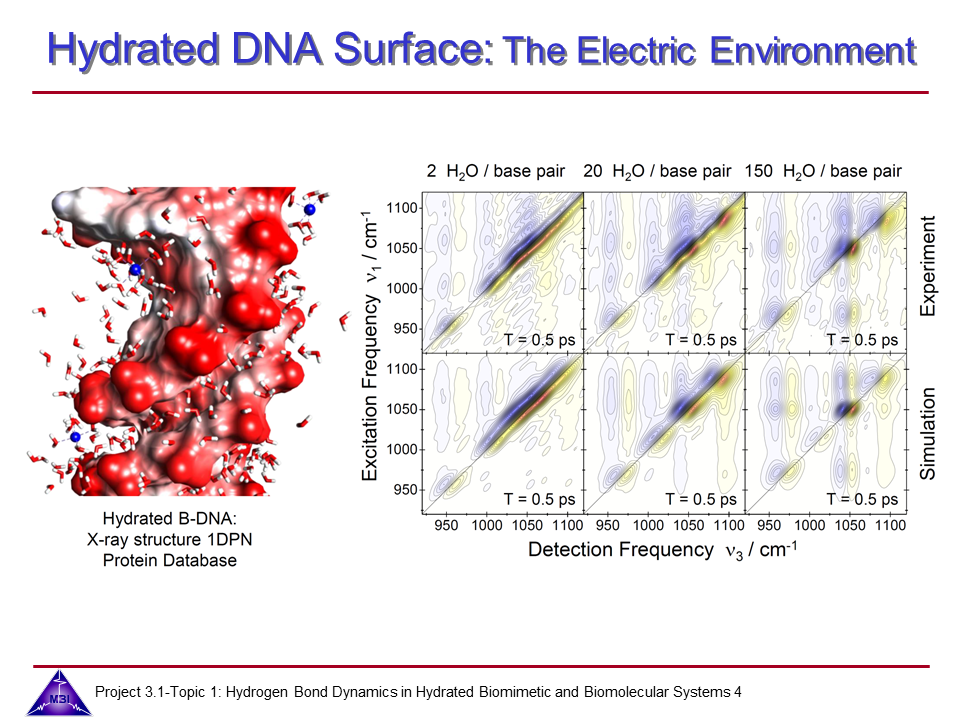

4. 2D-IR photon echo spectra of sugar-phosphate backbone modes of DNA, at different degrees of hydration.

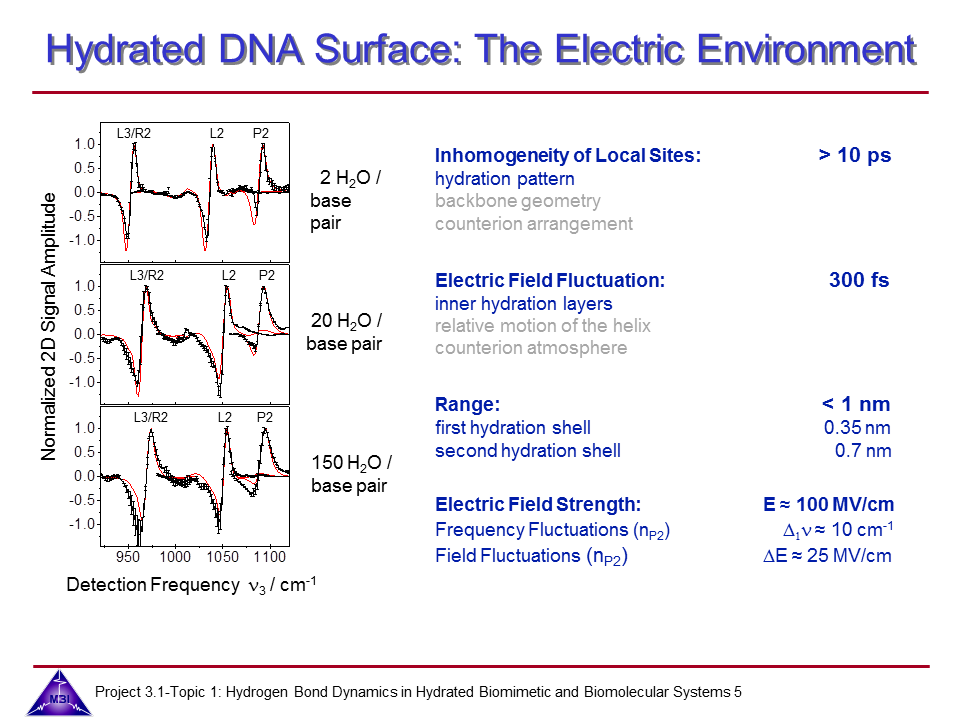

5. Cross-cuts of 2D-IR spectra, together with fits using stochastic modulation models, pointing at the important role of fluctuating local electric fields.
Ultrafast dynamics of hydrated phosphate ions
We investigate the vibrational dynamics of aqueous phosphate ions in a combined experimental and theoretical approach. The interaction of water molecules with ionic phosphate groups is of particular interest as phosphate groups are primary hydration sites in membranes and in biomolecules such as DNA and RNA.

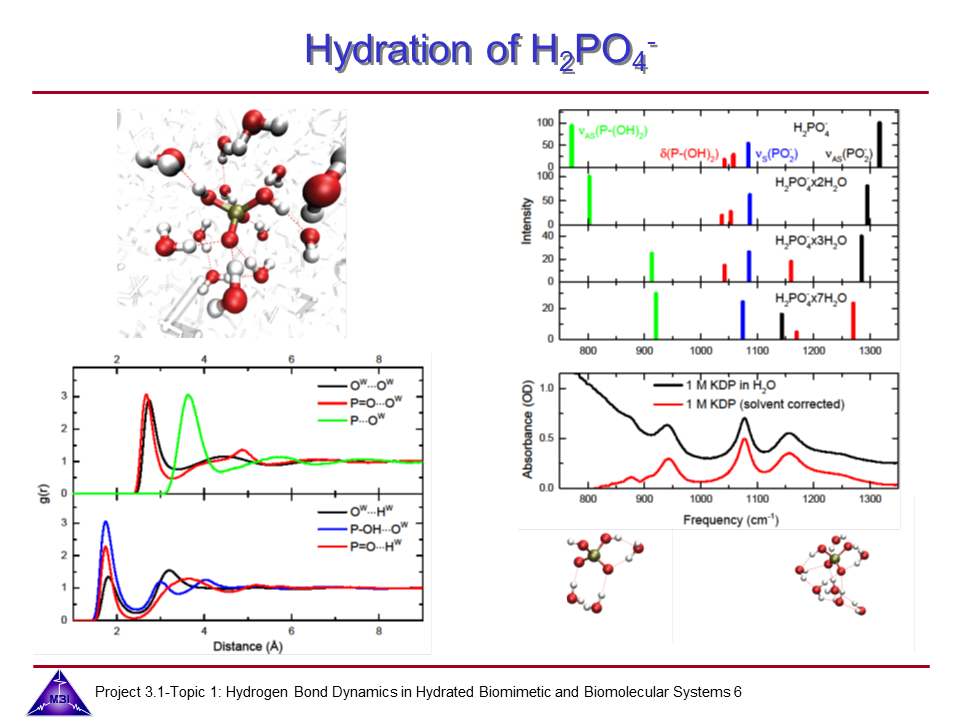

6. Vibrational spectra and structure of H2PO4- in aqueous solution.

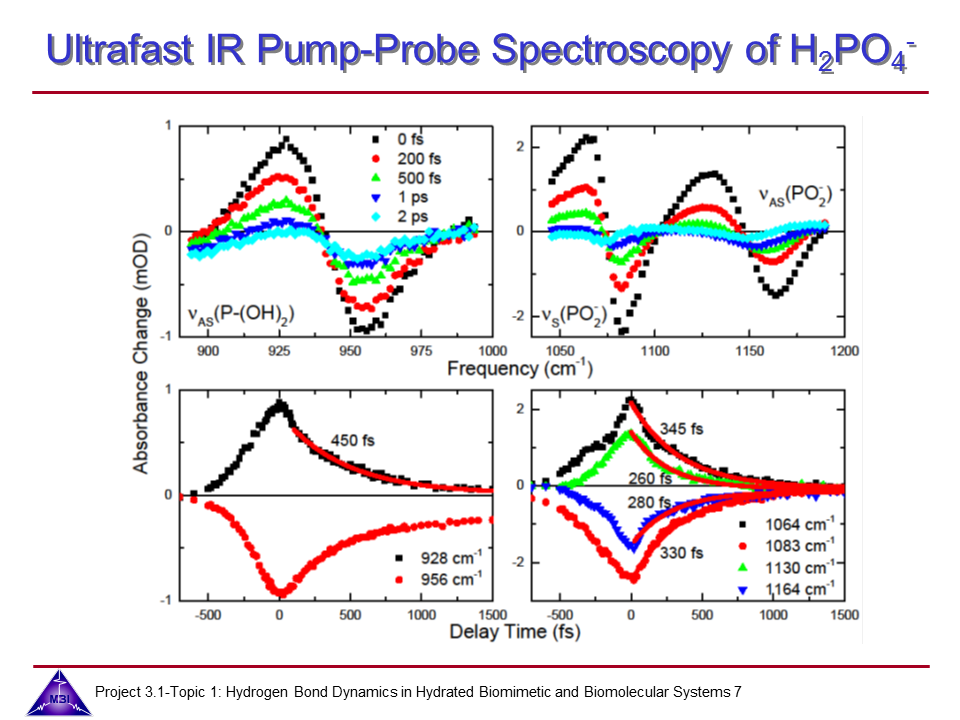

7. Pump-probe data of phosphate stretching modes of H2PO4- in aqueous solution showing vibrational lifetimes <500 fs.

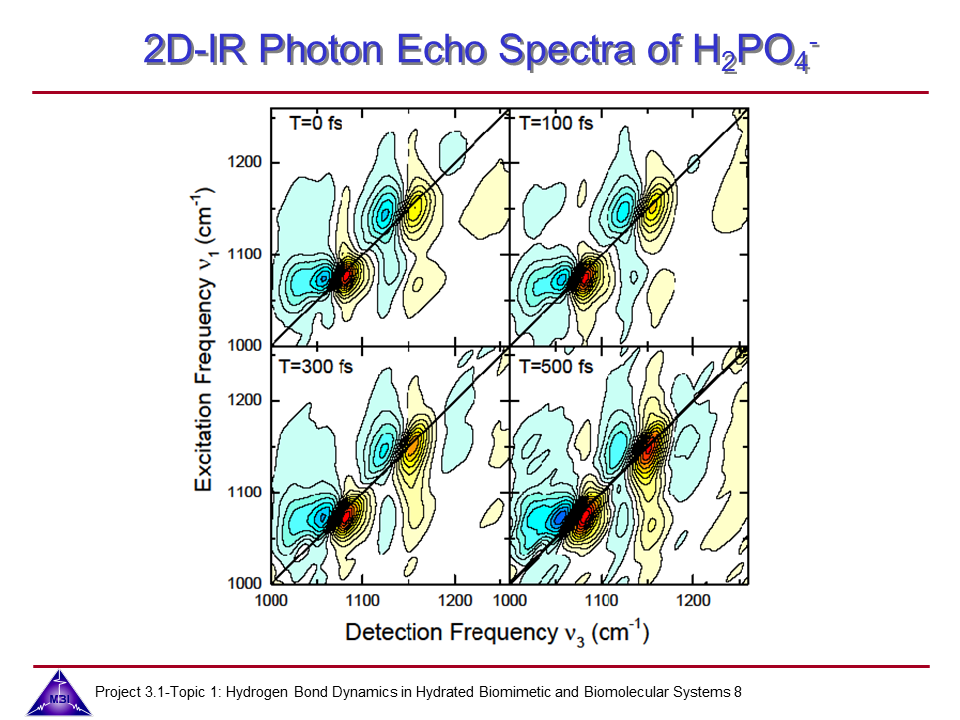

8. 2D-IR photon echo spectra for H2PO4- in aqueous solution, with which vibrational couplings and spectral diffusion dynamics of the phosphate stretching modes can be grasped.

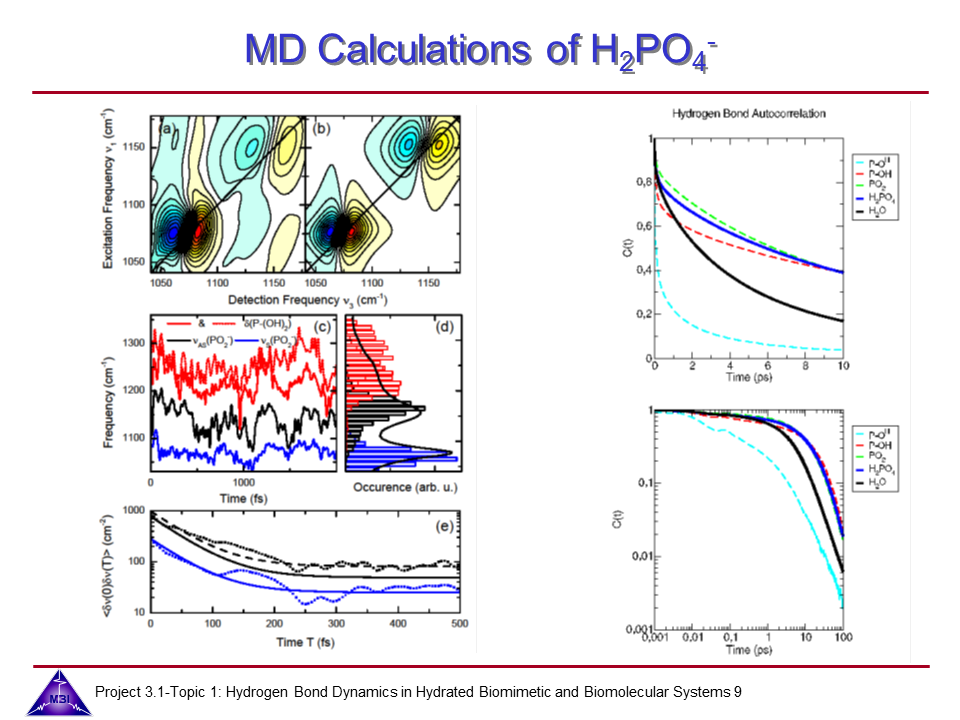

9. Frequency fluctuations of H2PO4- stretching modes due to librational motions of hydration-shell water derived from a Kubo analysis of 2D lineshapes and hybrid quantum-classical simulations.

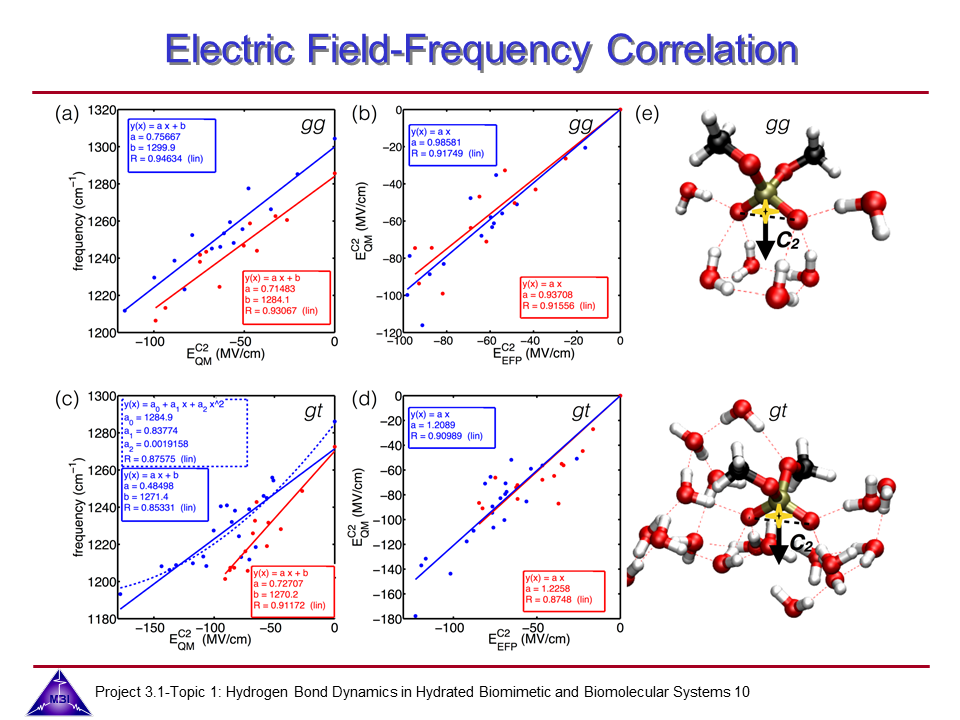

10. (a and c) Electric field-frequency correlation of the asymmetric (PO2)- stretch vibration of dimethylphosphate (DMP)
calculated on the VCI2 level of theory; (b and d) Correlation of ab initio calculated electric field EQM and the Effective Fragment Potential model EEFP.

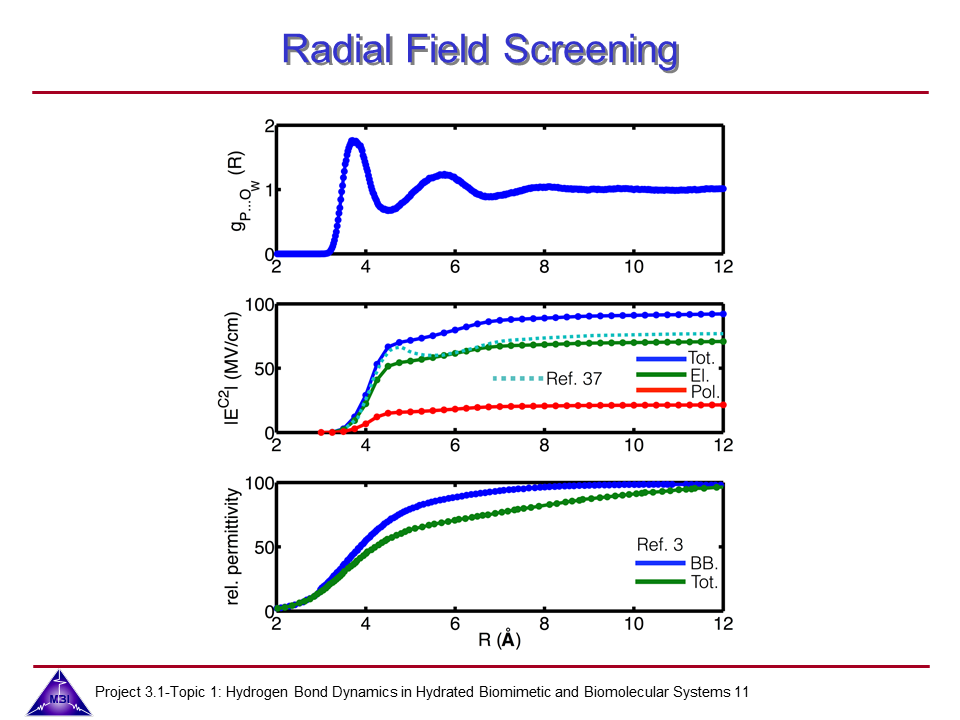

11. The time averaged electric field (middle) converges within the first 2-3 solvation shells with notable contributions from induction (cf. radial distribution function g(r), top).

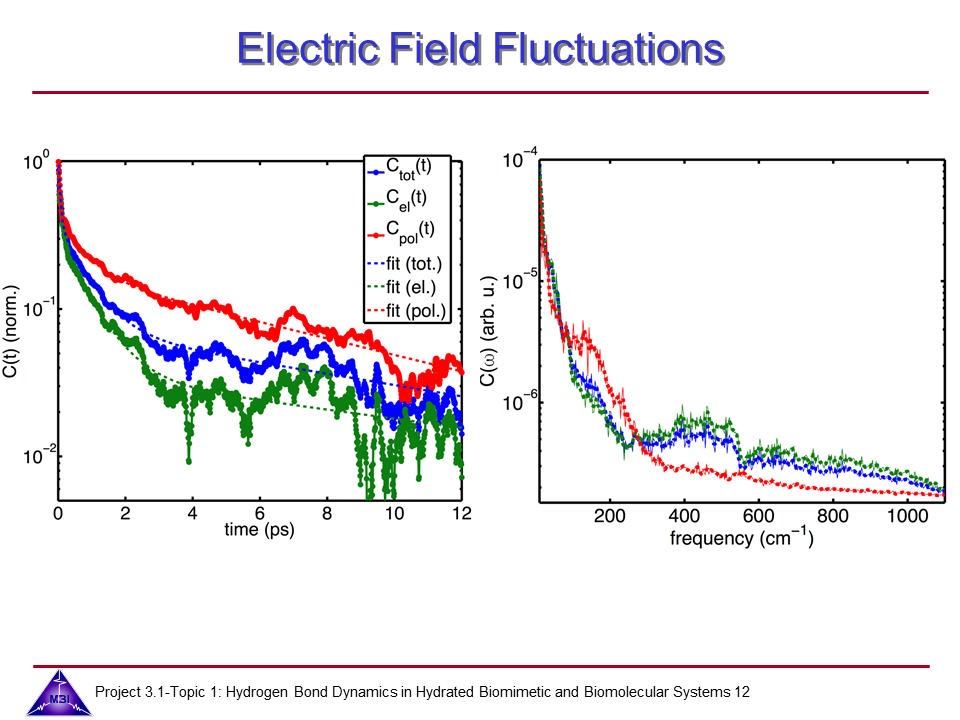

12.(left) normalized field fluctuation correlation function C(t) characterized by sub-100 fs and 2-3 ps fluctuation timescales;
(right) power spectral density C(ω) of the normalized field fluctuation correlation function C(t).

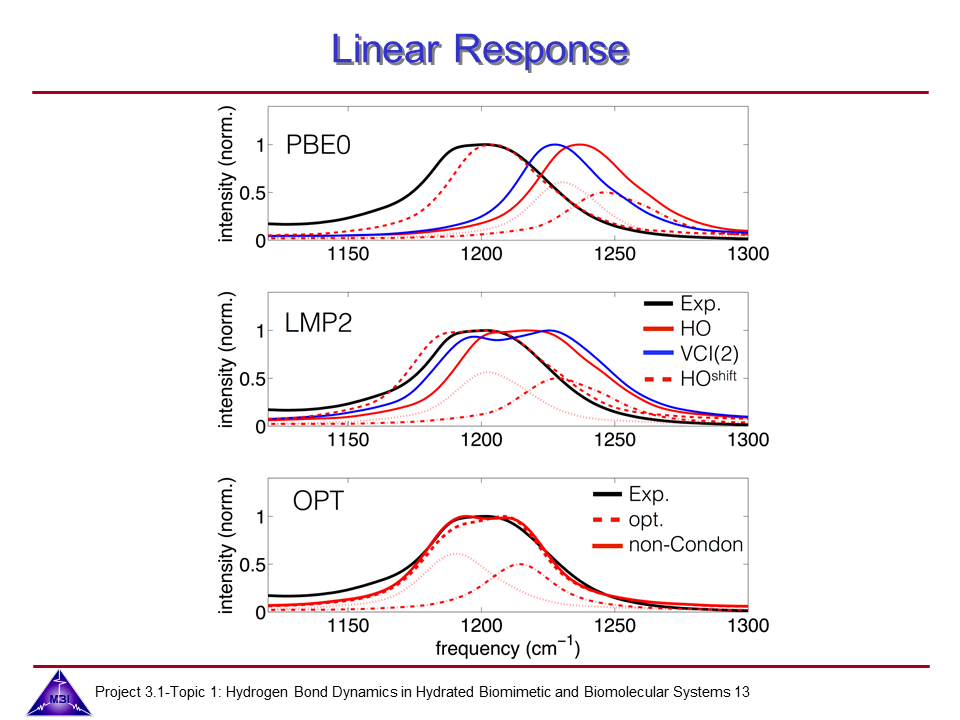

13. Experimental and simulated absorption spectrum of DMP in aqueous solution, dotted and dashed dotted lines denote the contribution of conformers gt and gg, respectively.
Ultrafast dynamics of hydrated excess proton
Hydrated protons are ubiquitous in aqueous acid-base reactions, in hydrogen fuel cells, and transmembrane proton channel proteins. Whereas numerous studies have focussed on isolated gas-phase hydrated proton-water clusters, we investigate the structure and dynamics of hydrated protons in the liquid phase. In our first studies we have focussed on the The Zundel cation H5O2+,

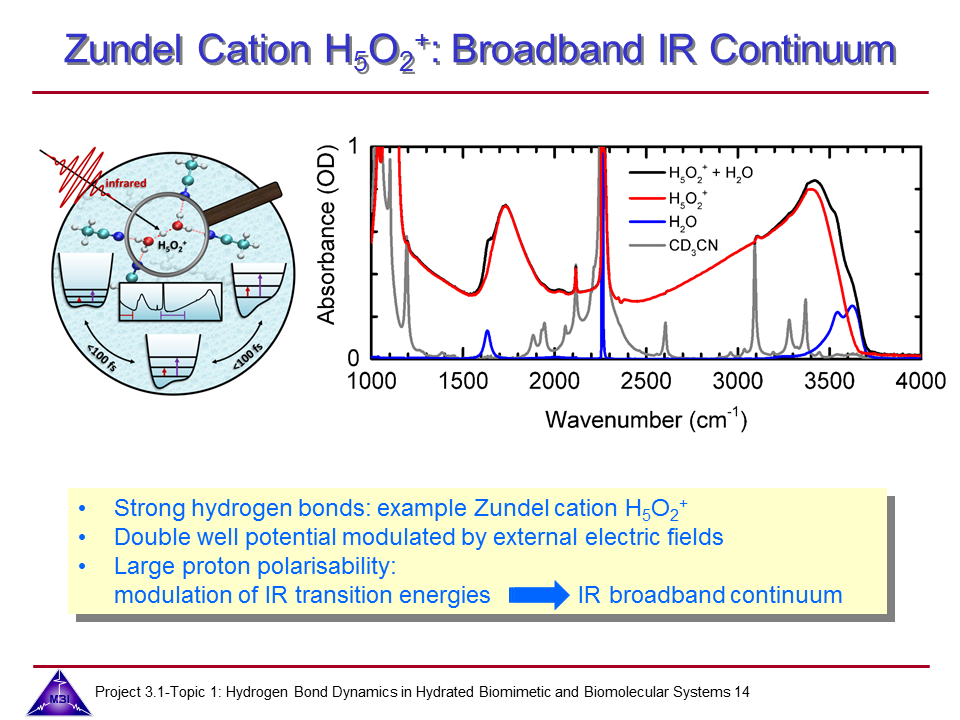

14. The Zundel cation H5O2+, prepared in acetonitrile solution, exhibits O-H stretching and O-H bending transitions, and the broadband Zundel continuum.

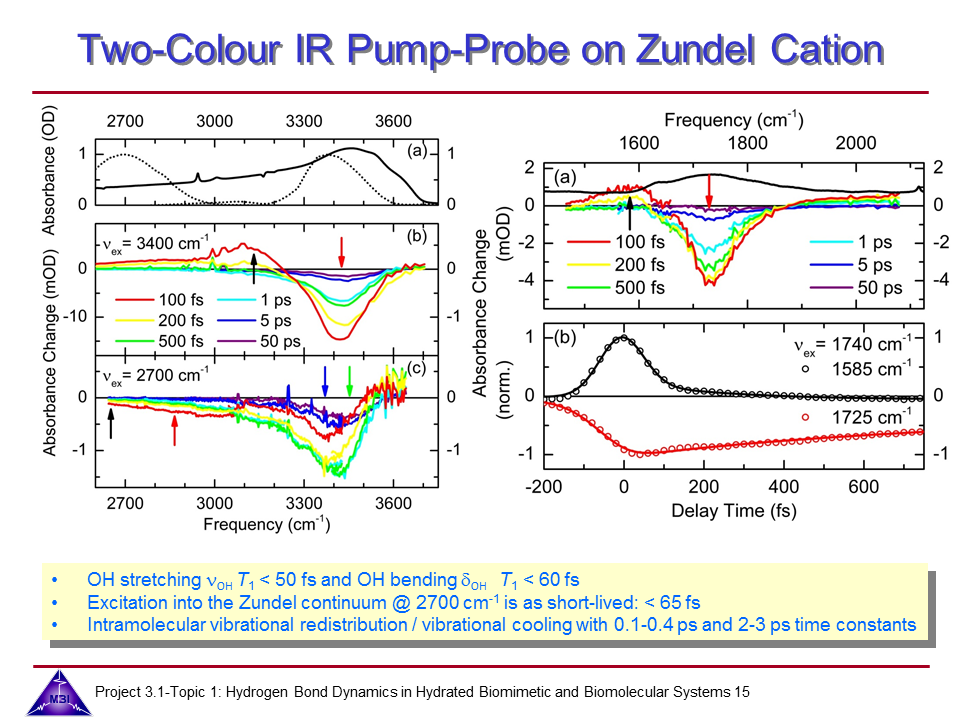

15. Two-colour IR pump-probe measurements on the O-H stretching and O-H bending transitions of the Zundel cation H5O2+, prepared in acetonitrile solution.

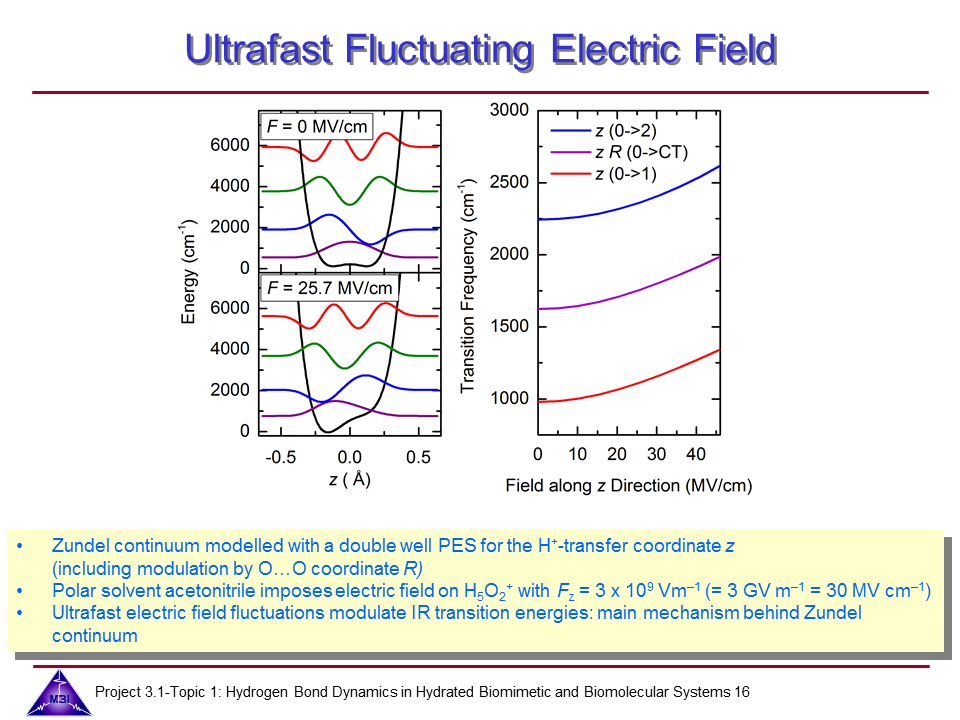

16. Ultrafast electric field fluctuations modulate the IR transition energies of the Zundel cation H5O2+: main mechanism behind the broadband Zundel continuum.

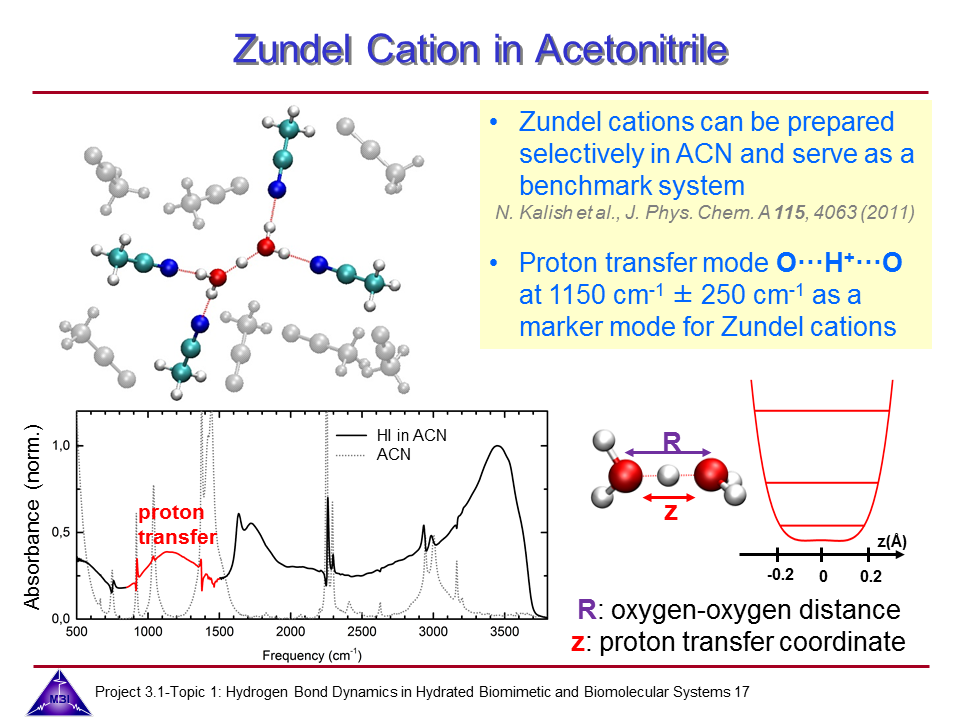

17. The spectroscopy of the fundamental v = 0 v=1 transition of the vibrational marker mode of the proton (the proton transfer mode z) in the Zundel cation H5O2+ can be explored using concentrated aqueous HI in acetonitrile solution.
18. Blue-shifted excited-state v=1 v=2 contributions in the 2D-IR spectra of the proton transfer mode z of the Zundel cation H5O2+ provide direct evidence of the double-well character of the potential of this vibrational mode.

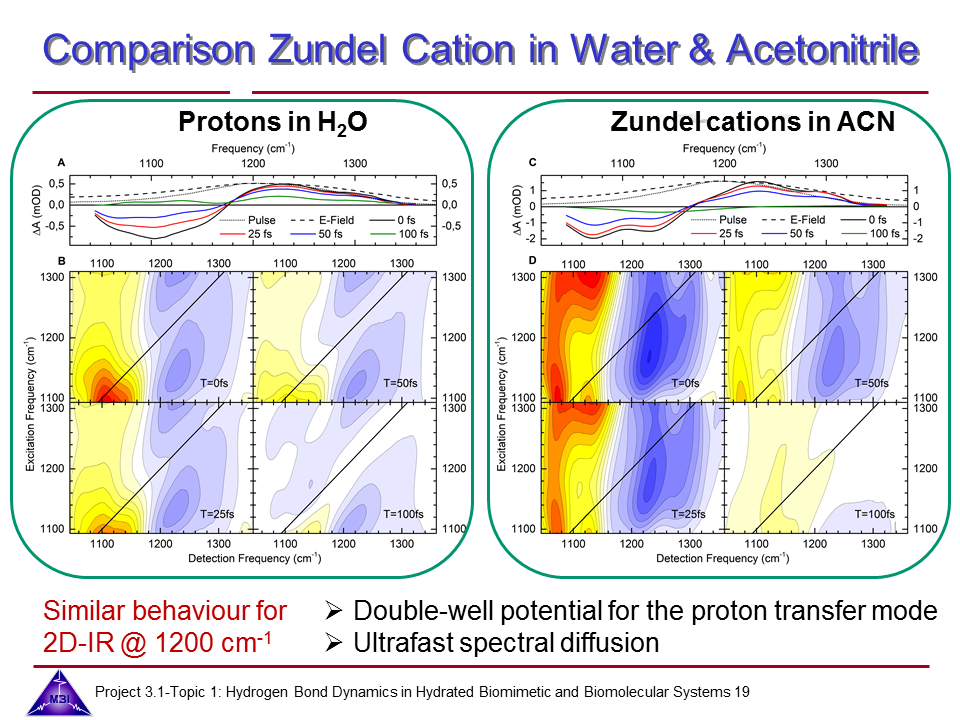

19. Comparison of the 2D-IR spectra measured in the spectral range of the proton transfer mode z of the Zundel cation H5O2+ in water and in acetonitrile shows that the Zundel cation is the most abundent hydrated proton species in water.
